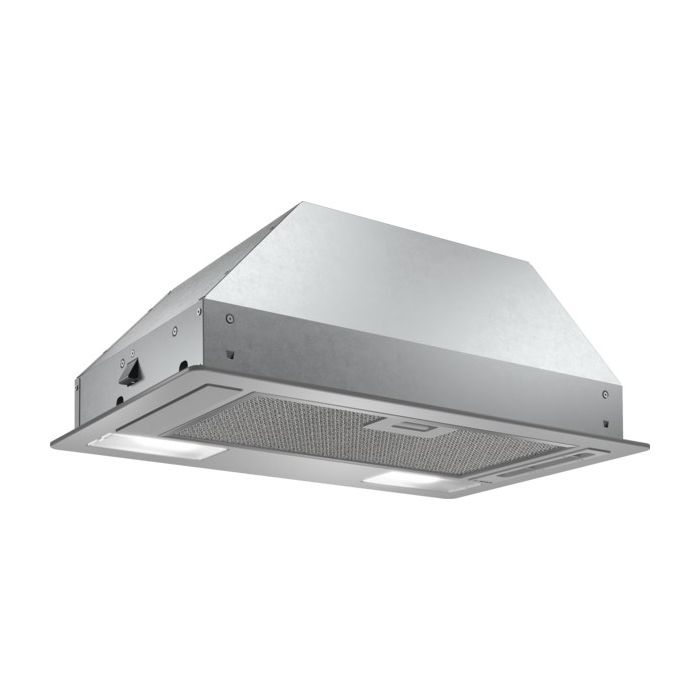

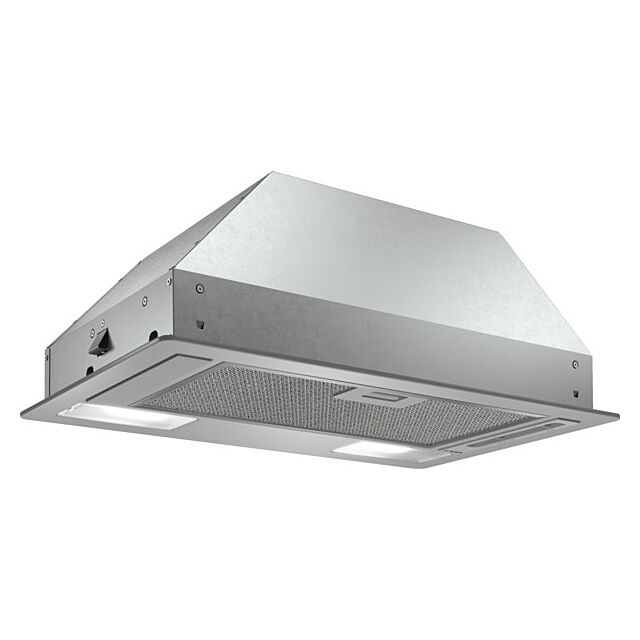

Bosch DLN53AA70B, Canopy cooker hood

£129.95
In Stock
Contact Us with any questions
Only 4 left
  • ColourGrey/Silver
  • Energy RatingD
  • Installation TypeBuilt-In
  • Air Flow Boost0.0
  • Appliance Current (A)5
  • Appliance Frequency (Hz)50
  • Appliance Voltage (V)220-240
  • Approval CertificatesCE
  • Construction TypeBuilt-In
  • Cord Length150
  • Diameter of Air Outlet120
  • Fluid Dynamic Efficiency9.5
  • Fluid Dynamic Efficiency ClassE
  • Grease Filter MaterialWashable aluminium
  • Grease Filter TypeKassette
  • Grease Filtering Efficiency66.0
  • Grease Filtering Efficiency ClassD
  • Lighting Efficiency12.1
  • Lighting Efficiency ClassD
  • Max Air Flow302
  • Max Niche Width493
  • Max Output Air Extraction302
  • Max Output Recirculating Air300
  • Min Air Flow130.0
  • Min Niche Width493
  • Motor LocationIntegrated motor in hood body
  • Niche Depth257
  • No Return Air Flow FlapYes
  • Noise Level62
  • Number of Lights2
  • Number of Motors1
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Max Speed62
  • Sound Power Min Speed46
  • Type of Control / AppliancesMechanical
  • Type of Control SettingsNone;Slide switch
  • TypologyBuilt-in/Built-under
  • Warranty Duration2
  • Manufacturer Guarantee2 years
  • EAN4242005095391
Key performance features:
  • Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
  • Max. extraction rate: 302 m3/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*
Features

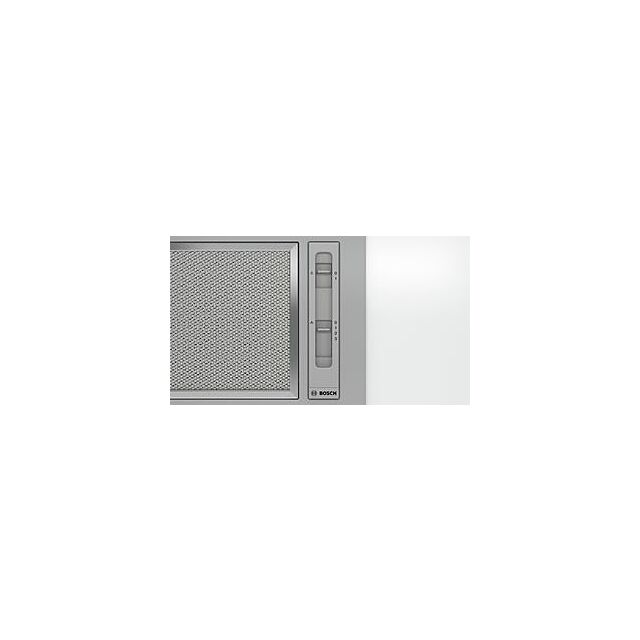

  • Slider switch control for extractor speeds and light
  • 3 power levels
  • Single motor
  • 2 x 3W LED
  • Colour Temperature: 2700 K
  • 1 removable metal grease filter cassette

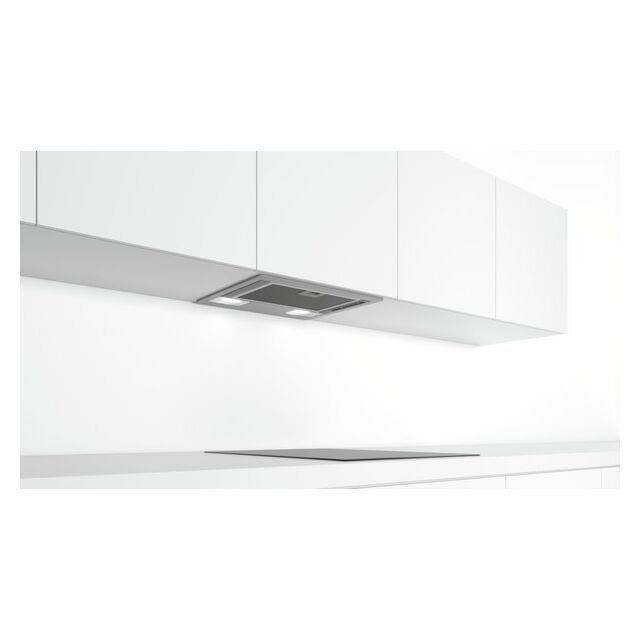

  • Installation: integrated
Design
  • Canopy hood
  • Slider switch control
  • Mechanical
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit (accessory) needed
  • Extraction rate according to EN 61591: max. 302 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 62 dB(A) re 1 pW (48 dB(A) re 20 µPa sound pressure)
  • Power rating: 121 W
  • Light Intensity: 78 lux
  • Electrical cable length 1.5 m
  • Diameter pipe Ø 120 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 208-208 x 534 x 300 mm
  • Dimensions recirculating (HxWxD): 208-208 x 534 x 300 mm
  • Built-in dimensions (HxWxD): 208 x 493 x 257 mm
  • Blower Efficiency Class: E*
  • Lighting Efficiency Class: D*
  • Grease Filtering Efficiency Class: D*
  • Average Energy Consumption: 67.7 kWh/year*
Optional accessories
  • Recirculating kit DWZ0IN0A0
More Information
Manufacturer Bosch
GTIN 4242005095391
Colour Grey/Silver
Model Number DLN53AA70B
Block eCommerce No
Price £129.95
Number of Lights 2
Warranty Duration 2
Noise Level 62
Plug Type GB plug
Cord Length 150
Min Niche Width 493
Max Niche Width 493
Typology Built-in/Built-under
Installation Type Built-In
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 9.5
Fluid Dynamic Efficiency Class E
Lighting Efficiency 12.1
Lighting Efficiency Class D
Grease Filtering Efficiency 66.0
Grease Filtering Efficiency Class D
Max Air Flow 302
Min Air Flow 130.0
Air Flow Boost 0.0
Sound Power Max Speed 62
Sound Power Min Speed 46
Max Output Air Extraction 302
Max Output Recirculating Air 300
Grease Filter Material Washable aluminium
Diameter of Air Outlet 120
Number of Motors 1
No Return Air Flow Flap Yes
Grease Filter Type Kassette
Niche Depth 257
Approval Certificates CE
Appliance Frequency (Hz) 50
Appliance Voltage (V) 220-240
Appliance Current (A) 5
Construction Type Built-In
Type of Control Settings None;Slide switch
Type of Control / Appliances Mechanical
Is On Display false
Branch Availability Sale Appliances,45837,False,1,1
Is Soft Bundle No
Energy Rating D
Grade -1
Expired Status No
