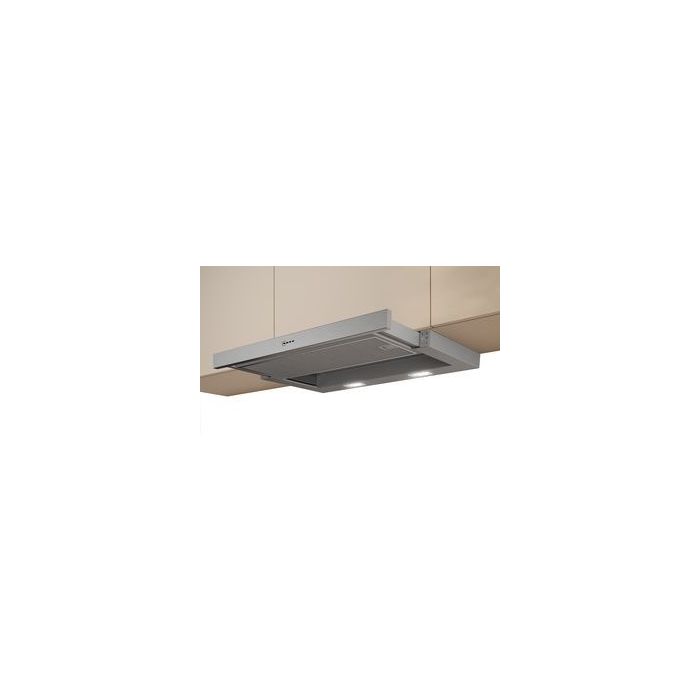

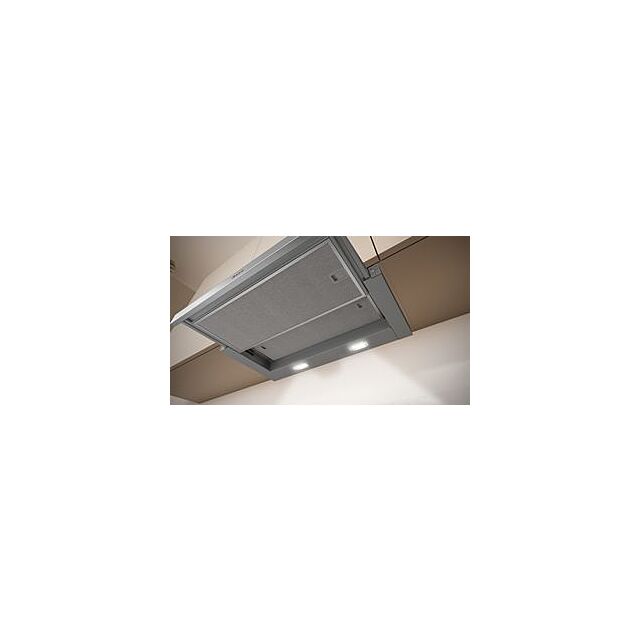

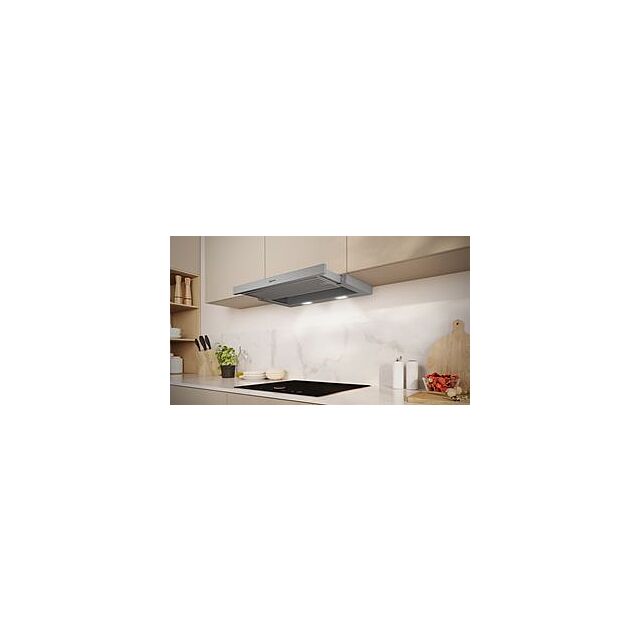

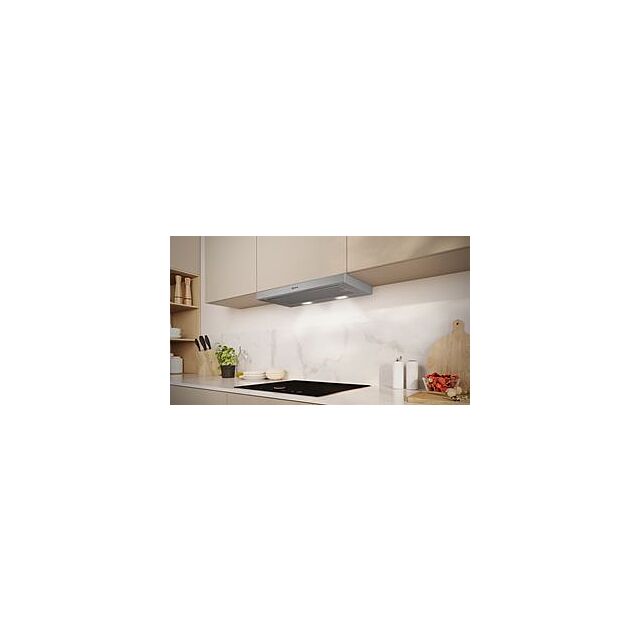

Neff D46ED22N1B, Telescopic cooker hood

£299.95
Out of Stock
Contact Us for availability
  • Colour: Grey/Silver
  • Energy Rating: A
  • Installation Type: Built-In
  • Air Flow Boost: 400
  • Appliance Current (A): 10
  • Appliance Frequency (Hz): 50; 60
  • Appliance Voltage (V): 220-240
  • Approval Certificates: CE, E17D UKCA marking, VDE
  • Boost Position Air Extraction: 400
  • Boost Position Output Recirculating: 353
  • Construction Type: Built-In
  • Cord Length: 175
  • Fluid Dynamic Efficiency: 24.6
  • Fluid Dynamic Efficiency Class: B
  • Grease Filter Material: Washable aluminium
  • Grease Filter Type: Kassette
  • Grease Filtering Efficiency: 79.6
  • Grease Filtering Efficiency Class: C
  • Lighting Efficiency: 71.7
  • Lighting Efficiency Class: A
  • Max Air Flow: 268
  • Max Niche Width: 526
  • Max Output Air Extraction: 268
  • Max Output Recirculating Air: 263
  • Min Air Flow: 161
  • Min Niche Width: 526
  • Motor Location: Integrated motor in hood body
  • Niche Depth: 290
  • Noise Level: 62
  • Noise Level Boost Position: 69
  • Number of Lights: 2
  • Number of Motors: 1
  • Operating Mode: Convertible
  • Plug Type: GB plug
  • Sound Power Boost: 69
  • Sound Power Max Speed: 62
  • Sound Power Min Speed: 49
  • Type of Control / Appliances: Electronic
  • Type of Control Settings: Button
  • Type of Light: LED
  • Typology: Pull-out
  • Warranty Duration: 2
  • Manufacturer Guarantee: 2 years
  • EAN: 4242004250807
Features
  • Electronic controls via Soft touch control
  • 3 speeds plus intensive
  • 2 x 1,5W LED
  • Efficient BLDC technology
  • Automatic intensive revert (6mins)
  • Automatic after running (Automatic after running (10 minutes))
  • 2 metal grease filter cassettes
Design
  • 60 cm wide
  • Silver metallic grey
  • Handle strip specification: stainless steel with logo
  • Filter cover stainless steel, perforated and dishwasher safe
Performance
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction recirculating kit (accessory) needed
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 268m³/h
  • Intensive 400 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 62 dB(A) re 1 pW
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 62dB(A) re 1 pW
  • Intensive: 69 dB(A) re 1 pW
  • Colour Temperature: 3500 K
  • Light Intensity: 294 lux
  • Power rating: 74 W
  • Average Energy Consumption: 21 kWh/year*
  • Blower Efficiency Class: B*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Planning and installation information
  • Installation: Cupboard 60 cm
  • Dimensions (HxWxD): 203 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Electrical cable length 1.75 m
More Information
Manufacturer Neff
GTIN 4242004250807
Colour Grey/Silver
Model Number D46ED22N1B
Block eCommerce No
Price £299.95
Min Niche Width 526
Max Niche Width 526
Number of Motors 1
Grease Filter Type Kassette
Typology Pull-out
Installation Type Built-In
Grease Filtering Efficiency Class C
Max Air Flow 268
Min Air Flow 161
Air Flow Boost 400
Sound Power Max Speed 62
Sound Power Min Speed 49
Sound Power Boost 69
Noise Level Boost Position 69
Max Output Air Extraction 268
Boost Position Air Extraction 400
Max Output Recirculating Air 263
Boost Position Output Recirculating 353
Grease Filter Material Washable aluminium
Grease Filtering Efficiency 79.6
Lighting Efficiency Class A
Lighting Efficiency 71.7
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 24.6
Fluid Dynamic Efficiency Class B
Number of Lights 2
Plug Type GB plug
Cord Length 175
Type of Light LED
Warranty Duration 2
Noise Level 62
Niche Depth 290
Approval Certificates CE, E17D UKCA marking, VDE
Appliance Frequency (Hz) 50; 60
Appliance Voltage (V) 220-240
Appliance Current (A) 10
Construction Type Built-In
Type of Control Settings Button
Type of Control / Appliances Electronic
Is On Display false
Is Soft Bundle No
Energy Rating A
Grade -1
Expired Status No
