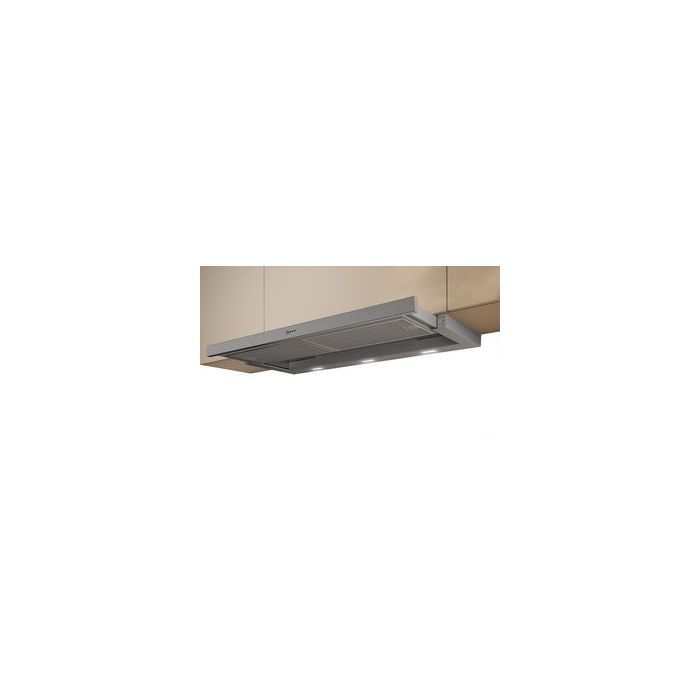

Neff D49ED22N1B, Telescopic cooker hood

£349.95
Out of Stock
Contact Us for availability
  • ColourGrey/Silver
  • Energy RatingA
  • Installation TypeBuilt-In
  • Air Flow Boost412.0
  • Appliance Current (A)10
  • Appliance Frequency (Hz)50; 60
  • Appliance Voltage (V)220-240
  • Approval CertificatesCE, E17D UKCA marking, VDE
  • Boost Position Air Extraction412
  • Boost Position Output Recirculating353
  • Construction TypeBuilt-In
  • Cord Length175
  • Fluid Dynamic Efficiency23.7
  • Fluid Dynamic Efficiency ClassB
  • Grease Filter MaterialWashable aluminium
  • Grease Filter TypeKassette
  • Grease Filtering Efficiency81.8
  • Grease Filtering Efficiency ClassC
  • Lighting Efficiency65.7
  • Lighting Efficiency ClassA
  • Max Air Flow266
  • Max Niche Width526
  • Max Output Air Extraction266
  • Max Output Recirculating Air263
  • Min Air Flow164
  • Min Niche Width526
  • Motor LocationIntegrated motor in hood body
  • Niche Depth290
  • Noise Level63
  • Noise Level Boost Position70
  • Number of Lights3
  • Number of Motors1
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Boost70
  • Sound Power Max Speed63
  • Sound Power Min Speed50
  • Type of Control / AppliancesElectronic
  • Type of Control SettingsLED;Low-lift pushbuttons
  • Type of LightLED
  • TypologyPull-out
  • Warranty Duration2
  • Manufacturer Guarantee2 years
  • EAN4242004251163
Features
  • Electronic controls via Soft touch control
  • 3 speeds plus intensive
  • 3 x 1,5W LED
  • Efficient BLDC technology
  • Automatic intensive revert (6mins)
  • Automatic after running (Automatic after running (10 minutes))
  • 3 metal grease filter cassettes
Design
  • 90 cm wide
  • Silver metallic grey
  • Handle strip specification: stainless steel with logo
  • Filter cover stainless steel, perforated and dishwasher safe
Performance
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction recirculating kit (accessory) needed
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use266m³/h
  • Intensive412 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 63 dB(A) re 1 pW
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use:63dB(A) re 1 pW
  • Intensive:70 dB(A) re 1 pW
  • Colour Temperature: 3500 K
  • Light Intensity: 355 lux
  • Average Energy Consumption: 22.2 kWh/year*
  • Power rating: 76 W
  • Blower Efficiency Class: B*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Planning and installation information
  • Dimensions (HxWxD): 203 x 898 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Electrical cable length 1.75 m
More Information
Manufacturer Neff
GTIN 4242004251163
Colour Grey/Silver
Model Number D49ED22N1B
Block eCommerce No
Price £349.95
Number of Lights 3
Warranty Duration 2
Noise Level 63
Plug Type GB plug
Cord Length 175
Type of Light LED
Min Niche Width 526
Max Niche Width 526
Typology Pull-out
Installation Type Built-In
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 23.7
Fluid Dynamic Efficiency Class B
Lighting Efficiency 65.7
Lighting Efficiency Class A
Grease Filtering Efficiency 81.8
Grease Filtering Efficiency Class C
Max Air Flow 266
Min Air Flow 164
Air Flow Boost 412.0
Sound Power Max Speed 63
Sound Power Min Speed 50
Sound Power Boost 70
Noise Level Boost Position 70
Max Output Air Extraction 266
Boost Position Air Extraction 412
Max Output Recirculating Air 263
Boost Position Output Recirculating 353
Grease Filter Material Washable aluminium
Number of Motors 1
Grease Filter Type Kassette
Niche Depth 290
Approval Certificates CE, E17D UKCA marking, VDE
Appliance Frequency (Hz) 50; 60
Appliance Voltage (V) 220-240
Appliance Current (A) 10
Construction Type Built-In
Type of Control Settings LED;Low-lift pushbuttons
Type of Control / Appliances Electronic
Is On Display false
Is Soft Bundle No
Energy Rating A
Grade -1
Expired Status No
