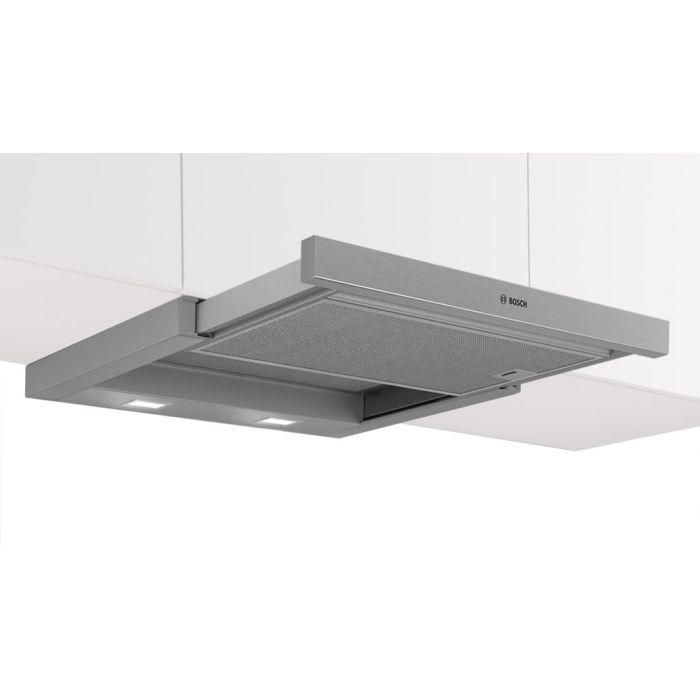

Bosch DFM063W56B, Telescopic cooker hood

£199.95
Out of Stock
Contact Us for availability
  • ColourGrey/Silver
  • Energy RatingC
  • Installation TypeBuilt-In
  • Air Flow Boost0.0
  • Appliance Current (A)10
  • Appliance Frequency (Hz)50
  • Appliance Voltage (V)220-240
  • Approval CertificatesCE, E17D UKCA marking, VDE
  • Construction TypeBuilt-In
  • Cord Length175
  • Fluid Dynamic Efficiency14.9
  • Fluid Dynamic Efficiency ClassD
  • Grease Filter MaterialWashable aluminium
  • Grease Filter TypeKassette
  • Grease Filtering Efficiency82.8
  • Grease Filtering Efficiency ClassC
  • Lighting Efficiency45.2
  • Lighting Efficiency ClassA
  • Max Air Flow328
  • Max Niche Width526
  • Max Output Air Extraction328
  • Max Output Recirculating Air231
  • Min Air Flow255
  • Min Niche Width526
  • Motor LocationIntegrated motor in hood body
  • Niche Depth290
  • Noise Level64
  • Number of Lights2
  • Number of Motors1
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Max Speed64
  • Sound Power Min Speed58
  • Type of Control / AppliancesMechanical
  • Type of Control SettingsRocker switches
  • Type of LightLED
  • TypologyPull-out
  • Warranty Duration2
  • Manufacturer Guarantee2 years
  • EAN4242005231942
Features
  • Rocker switch control for extractor speeds and light
  • Automatic On/Off operation when telescopic canopy is pulled out and pushed back
  • Capacitor motor
  • 2 power levels
  • 2 x 1,5W LED
  • 2 removable metal grease filter cassettes
Design
  • 60 cm wide
  • Silver metallic lacquer
  • Handle strip specification: stainless steel with logo
  • Filter cover stainless steel, perforated and dishwasher safe
Performance
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit (accessory) needed
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 max. 328 m³/h
  • Noise level according to EN 60704-2-13 at max.normal use exhaust air:64 dB(A)re 1 pW(A)re 1 pW
  • Colour Temperature: 3500 K
  • Light Intensity: 131 lux
  • Power rating: 93 W
  • Average Energy Consumption: 41.1 kWh/year*
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Planning and installation information
  • Dimensions (HxWxD): 203 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Electrical cable length 1.75 m
More Information
Manufacturer Bosch
GTIN 4242005231942
Colour Grey/Silver
Model Number DFM063W56B
Block eCommerce No
Price £199.95
Number of Lights 2
Warranty Duration 2
Noise Level 64
Plug Type GB plug
Cord Length 175
Type of Light LED
Min Niche Width 526
Max Niche Width 526
Typology Pull-out
Installation Type Built-In
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 14.9
Fluid Dynamic Efficiency Class D
Lighting Efficiency 45.2
Lighting Efficiency Class A
Grease Filtering Efficiency 82.8
Grease Filtering Efficiency Class C
Max Air Flow 328
Min Air Flow 255
Air Flow Boost 0.0
Sound Power Max Speed 64
Sound Power Min Speed 58
Max Output Air Extraction 328
Max Output Recirculating Air 231
Grease Filter Material Washable aluminium
Number of Motors 1
Grease Filter Type Kassette
Niche Depth 290
Approval Certificates CE, E17D UKCA marking, VDE
Appliance Frequency (Hz) 50
Appliance Voltage (V) 220-240
Appliance Current (A) 10
Construction Type Built-In
Type of Control Settings Rocker switches
Type of Control / Appliances Mechanical
Is On Display false
Is Soft Bundle No
Energy Rating C
Grade -1
Expired Status No
